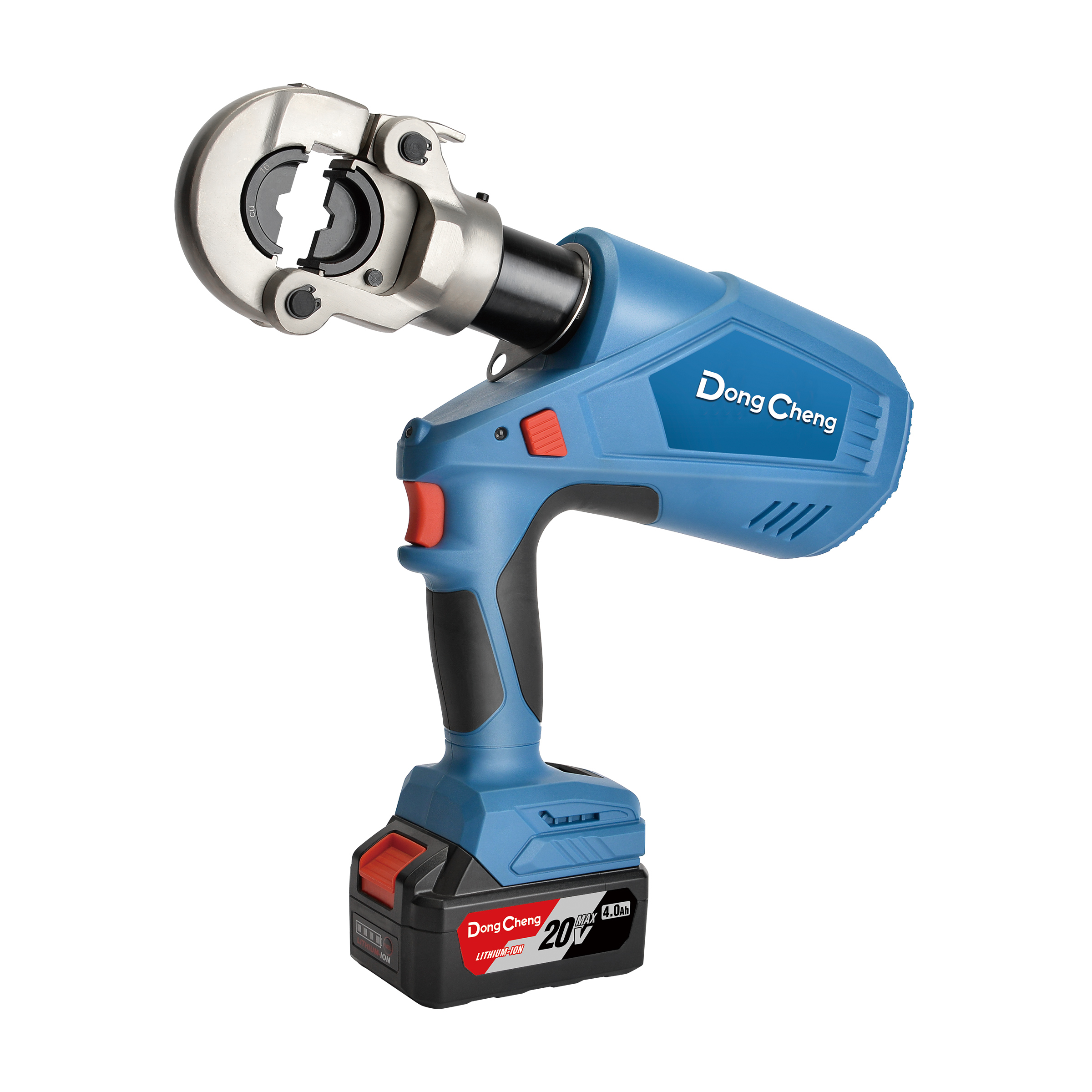

DCYH300 (TYPE EM/Z)
Battery: 20VMAX/4.0Ah×2/Solo
Max. Crimping force: 60KN
Stroke: 17mm
Max. Crimping Dia： Cu 300mm2/ Al 240mm2
Oil Capacity: ≈115mL
Hydraulic Oil Suggestion: Shell Tellus H2V HV15
Crimping Cycle: 2.5-5s( depend on size of cable)
Working Temperature: -10-40℃
Net Weight: 4.6kg/4.0kg
Features
1. Micro hydraulic system;
2. Micro bipolar hydraulic system;
3. The crimping head, smoothly rotates by 350°;
4. OLED display;
5. LED light.
Accessories &
Package
EM: 4.0Ah×2(2A Charger), Sealing Ring of Cylinder (1set), Sealing Ring of Safety Valve (1set), Crimping Dies (11pcs) (16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2), Plastic Case Packing
